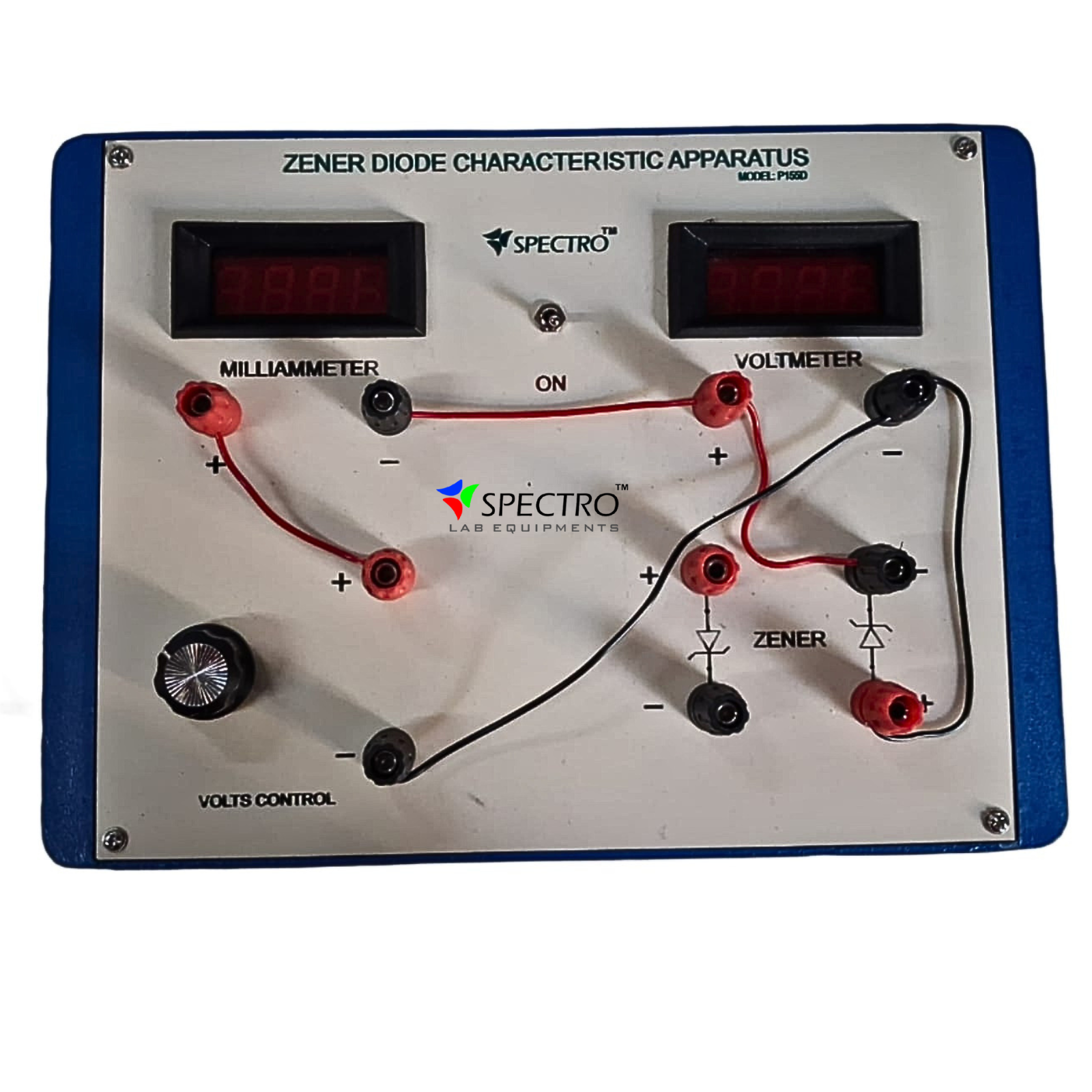

The Zener Diode Characteristic Apparatus is a precision laboratory instrument designed to study and analyze the V-I characteristics of a Zener diode in both forward and reverse bias conditions. This apparatus enables students to understand the behavior of a Zener diode, especially its voltage regulation property in the breakdown region. The unit is equipped with built-in digital voltmeter and milliammeter displays for accurate measurement of voltage and current. It also features a variable voltage control knob, allowing users to adjust the input voltage smoothly during experimentation. Clearly marked terminals and circuit layout make connections simple and safe for educational use. Housed in a sturdy, compact enclosure, this apparatus is ideal for physics and electronics laboratories in schools, colleges, and technical institutions.
